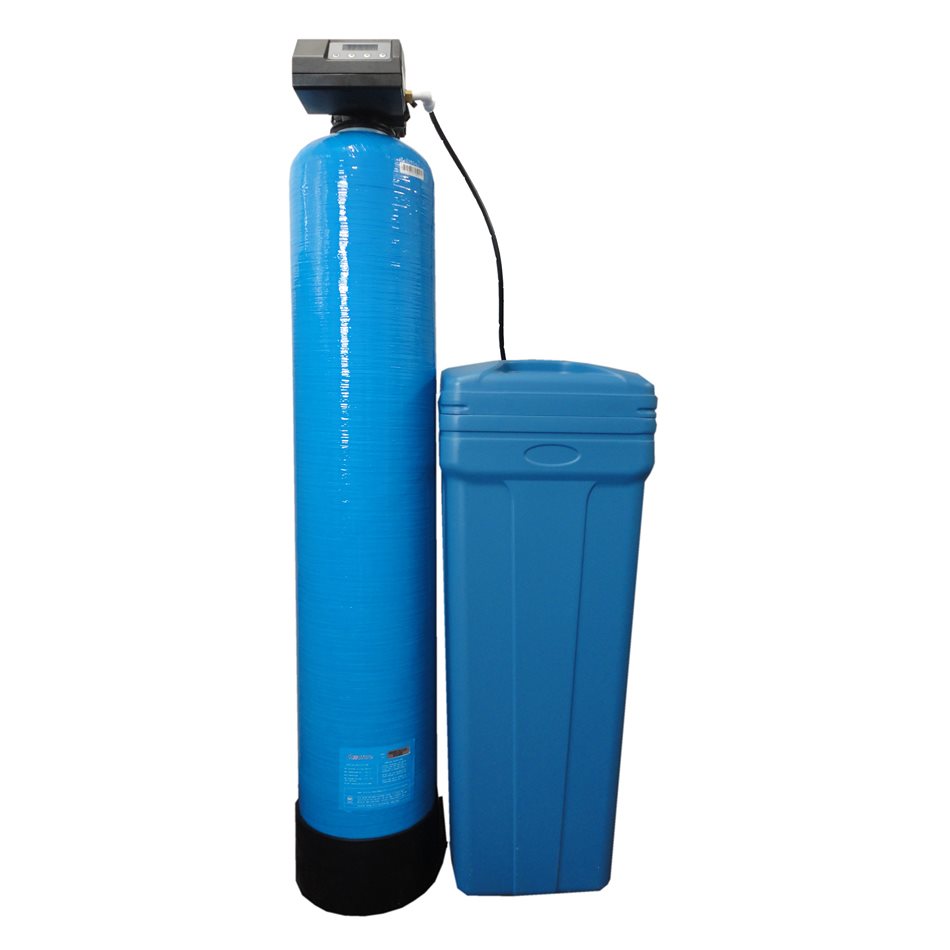

WATER SOFTNER

Description:

Softener is use to water having high hardness. all water containing calcium & magnesium salt in considerable amount is called HARD WATER. When the temperature of hard water is raised, whether in a boiler or any other heating system, hardness ions precipitate and form scales on the metal surfaces due to the lower solubility of the hardness salts at higher temperatures.This hardwater will deposit a hard scale in pipes, heating coils, boiler etc resulting in waste of efficiency, fuel & money. Hardness causing salts need to be removed from the water so that problems of scaling and consequential difficulties of reduced flow cross-section, higher metal temperatures and reduced thermal efficiencies are eliminated. Softening is done by an ion exchange resin, this process uses an ion exchange resin which replaces the calcium &magnesium ions in the waste by an equivalent no of sodium ions.The treat water is call SOFT WATER.

Applications-

1. Boiler feed.
2. Cooling tower make up.
3. Beverages manufacture.
4. Process water in textile mill.
5. Hotels.,Hospitals. Laundry &Air conditioning plant.

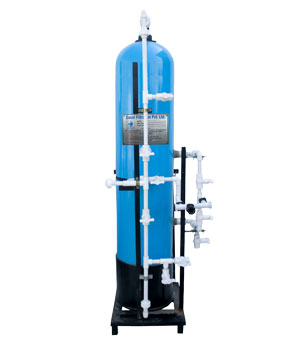

MIX BED PLANT

Description:

This is a single column unit, filled with strongly acidic cation & Strangely basic anion exchange resin mix bed together evenly these units produced water of high quality confirming to IP specification. Determination of the purity of the treated water is normally done by measuring its conductivity. Low conductivity of conductance means high purity. Mixed bed units normally produce treated of less 1 microsiemens/cm conductivity

Applications-

1. Electroplanting.
2. Textile Processing.
3. Pharmaceuticals.
4. Beverage Production.
5. Battery Water.
6. Ice Plant.
7. Chilling Plant.
8. Dyes & Chemicals.
9. Boiler Feed Water.

U.V System

Applications-

1. Water Treatment Plant.
2. Pharmaceuticals.
3. Hospitals.
4. Breweries.
5. Hotel & Restaurants.
6. Cosmetics Products.
7. Distelleries.
8. Bottled Water Production.
9. Effluent Treatment Plant.

ACTIVATED CARBON FILTER

Description:

The activated carbon filters use granular activated carbon media. These filters are ideally are suitable for dechlori nation of water also for removal of organic matter activated carbon filters offer the advantages of depth filtration ad high specific flow rate at economic cost.

Applications-

1. Swimming pool water filteration.
2. Pre treatment water for industrial water treatment plant & reverse osmosis plant.
3. Drinking water supply.
4. Removal of iron from water.
5. Hotels & Restaurant.

SAND FILETR

Description:

Multi-grade filters are used for renoval of suspended matter from raw water the media used in this filter is aspecially graded sand. (Coarse & Fine). This allows the complete utilisation of the large spaces between the particles for removal of the supended impurities.

D.M PLANT

Description:

A demineralizer plants removes total dissolved salt from the raw by an iron exchange process in this process the cation are exchange for hydrogen & anions for hydroxyl ions to give chemically pure water.

R.O. PLANT

Description:

Applications-

1. Electroplanting.
2. Texttile Processing.
3. Pharmaceuticals.
4. Beverage Production.
5. Battery Water.
6. Ice Plant.
7. Chilling Plant.
8. Dyes & Chemicals.
9. Boiler Feed Water.

SWIMMING POOL FILTERATION PLANT

Description

Side- Mount sand filters and commercial multi sand filters bring forth the latest in filter technology. Superior deisgn provide extra strength, improved sturdiness making the product highly durable, corrosion-resistant and service friendly operations.

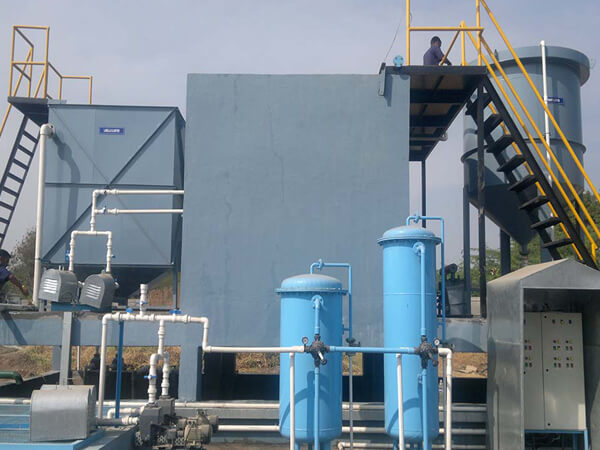

EFFLUENT-TREATMENT PLANT

Description

We are engaged in manufacturing premium quality Effuent Treatment Plant (ETP). Manufacturing using corrosion-resistant Mild Steel and CPVC,they are most cost effective and technically proven system to remove the unwanted, hazardous chemicals from waste-water to meet the statutory pollution control requirements. Such plants are especially required for chemicals, pharceuticals, phosphate and electroplasting waste waters. We undertake turnkey projects of various capacities as per the client's requirement.

Features

• Cost-effective
• Compact design
• Easy to install/mount
• Flexible design

WATER TREATMENT CHEMICALS

R.O Chemicals

1. N.A R.O.-20     Cleaning Chemicals
2. N.A R.O.-30    Cleaning Chemicals
3. N.A R.O.-111    Antiscanlant
4. N.A R.O.-222    Antiscanlant

Boilar Chemicals

1. N.A B-23    Antiscanlant
2. N.A B-24    Oxygen Scavanger
3. N.A B-25    pH Booster

Cooling Water treatment Chemicals

1. N.A C-31    Antiscanlant & Anticorrosion
2. N.A C-32    Antiscanlant & Anticorrosion
3. N.A C-33    Biocide
4. N.A C-34    Biocide

Resing Cleaning Chemicals

1. N.A C-31    This is a resin cleaner to removefoulantsfrom resin & keepthe softer & D.M. Plant cation resin & good operation condition.
2. N.A A77    This is a resin cleaner to remove organic foulant from Anion.
